Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

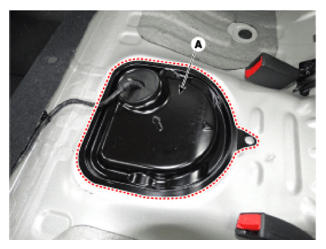

- Remove the fuel pump service cover (A).

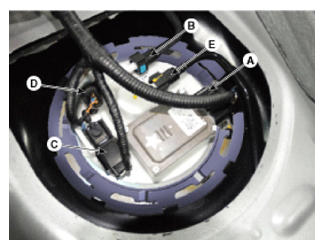

- Disconnect the fuel pump control module connector (A).
- Disconnect the fuel feed tube quick-connector (B).
- Disconnect the fuel tank pressure sensor connector (C).
- Disconnect the fuel pressure sensor connector (D).
- Disconnect the vapor tube quick-connector (D).

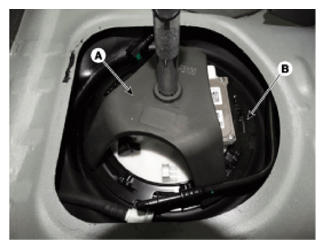

- Remove the fuel pump after removing the locking ring (B) with SST (A) [SST NO.: 09310-F3100] from the fuel tank.
