Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

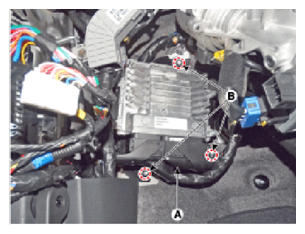

  2. Disconnect the TCM connector (A).
  3. Remove the TCM from the vehicle after removing the mounting nut (B-3ea).
G12977420Courtesy of HYUNDAI MOTOR AMERICA
