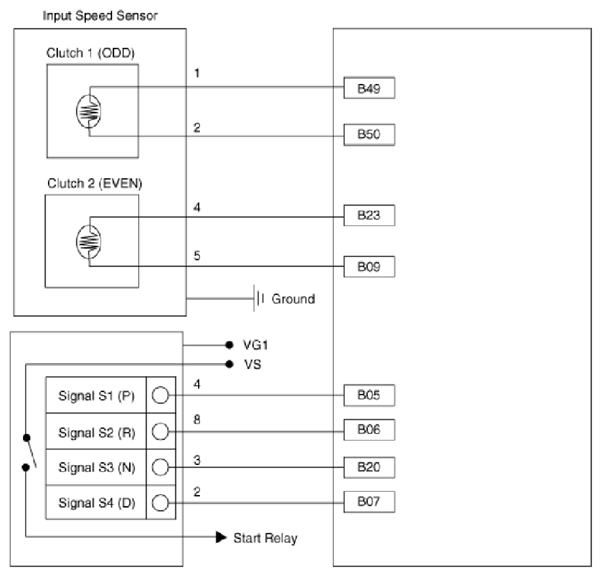

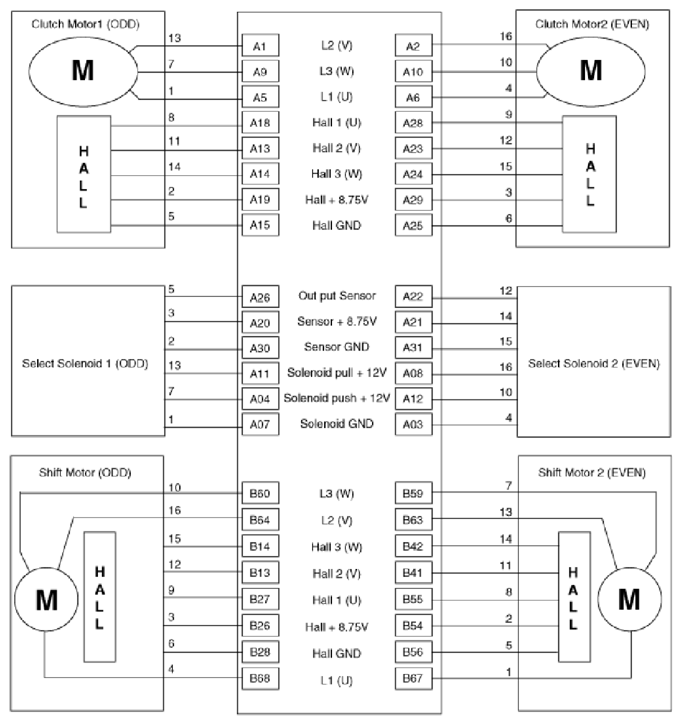

Home › Hyundai › 2019 › Elantra Eco › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.4L › DCT Control Module (TCM) › Schematic Diagrams › Circuit Diagram
