Components And Components Location: Components

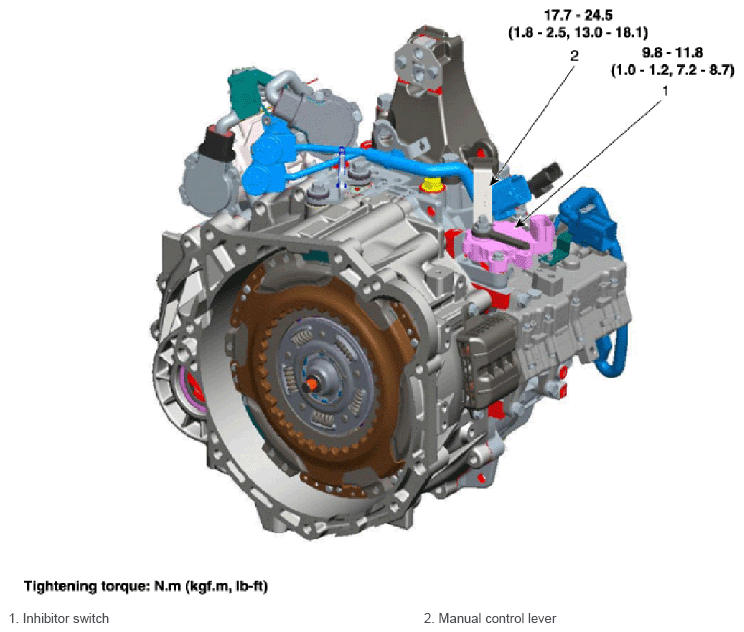

Fig 1: Locating Inhibitor Switch Components With Torque Specification
G12977478Courtesy of HYUNDAI MOTOR AMERICA
