Home › Hyundai › 2019 › Elantra Eco › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.4L › Input Shaft Speed Sensor 1 › Components And Components Location › Components

Components And Components Location: Components

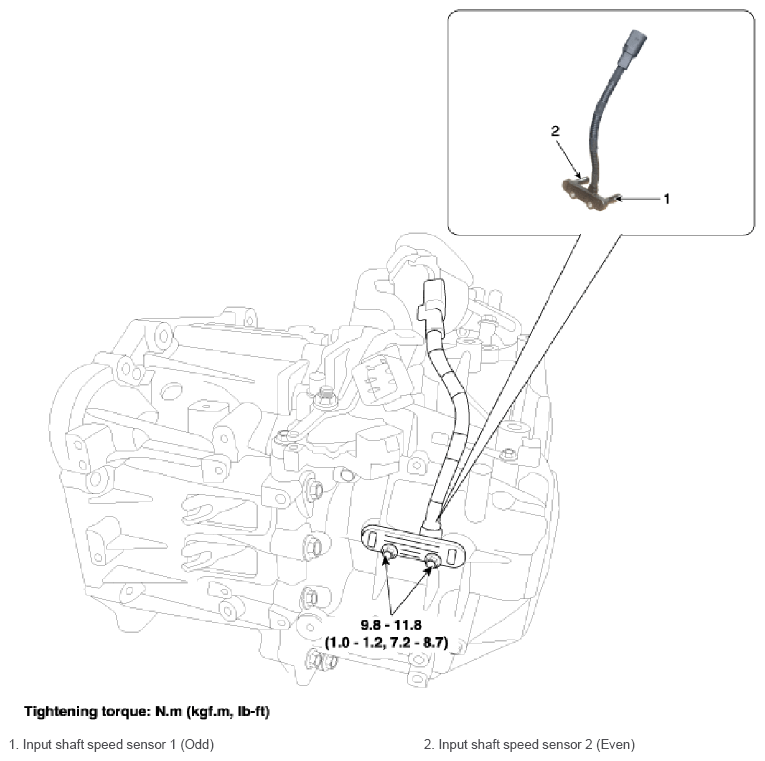

Fig 1: Locating Input Shaft Speed Sensor 1 Components With Torque Specification
G12977464Courtesy of HYUNDAI MOTOR AMERICA
