Repair Procedures: Installation

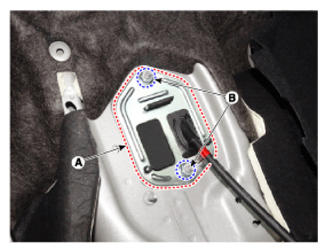

- Install the retainer (A) and then tighten the nut (B-2ea).
Tightening Torque:
11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

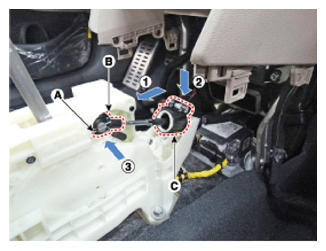

- Install the shift cable (B) and then fix the snap pin (A).CAUTION:

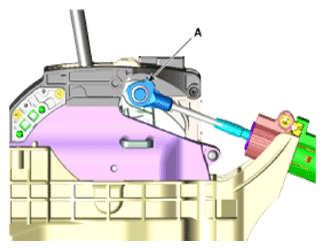

- When assembling shift cable, the projection (A) must face upwards.
- When assembling the snap pin, be careful about the correct direction.
- The band portion (A) must point to the front of the vehicle.
- The band portion (A) must point outwards.

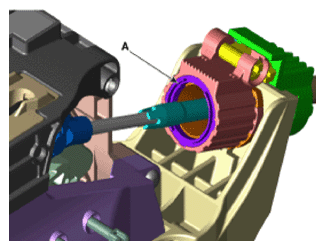

- After installing the shift cable socket, check portion (A) to see if it projects outwards from the cap.

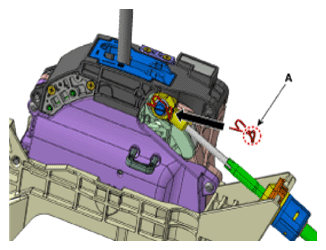

- When assembling shift cable, the projection (A) must face upwards.
- Install the shift cable (A) in the cable bracket (B).

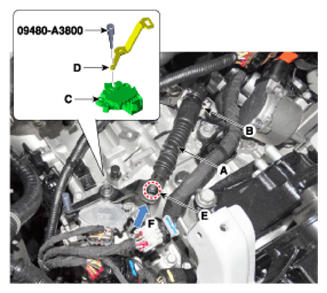

- Align the hole (C) in the Manual Control Lever with the "N" position hole (D) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No.: 09480-A3800).
- Lightly tighten the nut (E) after connected the shift cable (B) in the Manual Control Lever.
- Push shift cable (B) lightly to "F" direction displayed to eliminate free play of shift cable.
- Tighten the nut (E) with the specified torque.
Tightening Torque:
9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)
- Remove the inhibitor switch guide pin (SST No.: 09480-A3800) from the hole.
- Install the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the ECM.
(Refer to Engine Control System - "ECM ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
