Repair Procedures: Removal
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the ECM.
(Refer to Engine Control System - "ECM ")

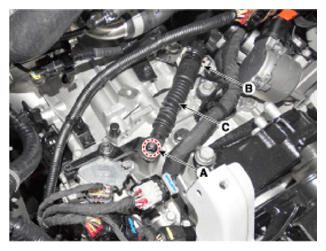

- Remove the shift cable (C) from the cable bracket (B), after loosening the mounting nut (A).

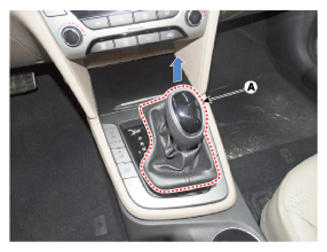

- Remove the shift lever knob & boots (A) pull both of it up.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")
- Disconnect the shift cable.

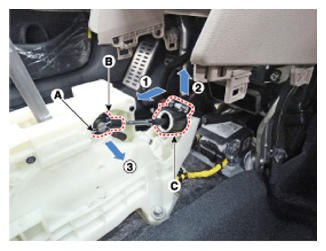

- Disconnect the eye-end (B) after removing the snap pin (A).
- Release the lock and then remove the cable socket (C).

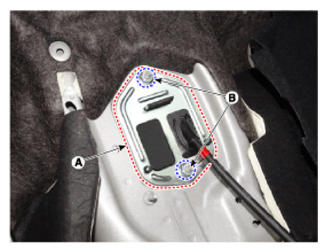

- Remove the retainer (B) by loosening the nuts (B-2ea).
- Remove the shift cable from the vehicle.
