Rear Door Lock Module Inspection
- Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")
- Remove the rear door module.
(Refer to Body - "REAR DOOR MODULE ")

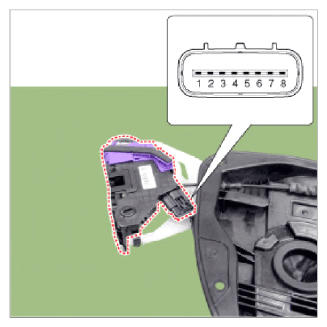

- Disconnect the connector from the actuator.

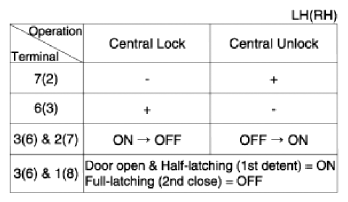

No Pin Information LH RH 1 AJAR Switch - 2 Lock/Unlock switch Motor 1 3 COM Motor 2 4 - - 5 - - 6 Motor 2 COM 7 Motor 1 Lock/Unlock switch 8 - AJAR Switch - Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
