Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

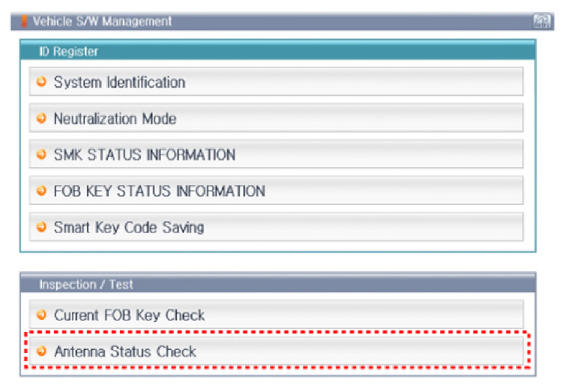

Select the "Antenna Status Check".

Courtesy of HYUNDAI MOTOR AMERICA

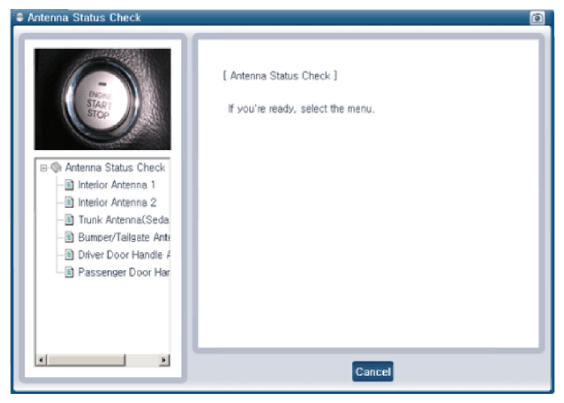

After IG ON, select the "Antenna Status Check".

Courtesy of HYUNDAI MOTOR AMERICA

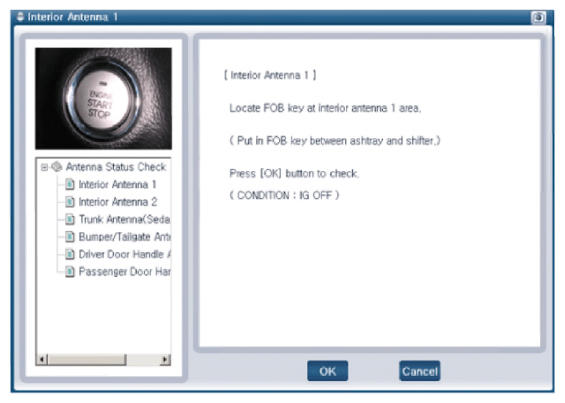

Set the smart key near the related antenna and operate it with a GDS.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- Interior Antenna 1
- Interior Antenna 2
- Bumper Antenna
- Driver Door Antenna
- Assist Door Antenna
