Diagnosis Procedure By Using Diagnostic Device

As Service Information for Diagnosis 1methods by using diagnosis device, the main contents are as follows:

Connect self-diagnosis connector (16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

Select the "vehicle model" and "ABS/ESC" on GDS vehicle selection screen, then select OK.

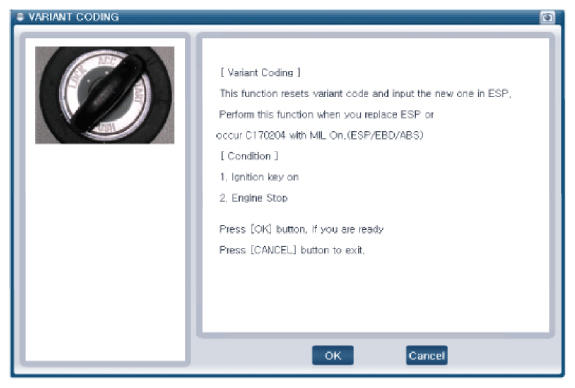

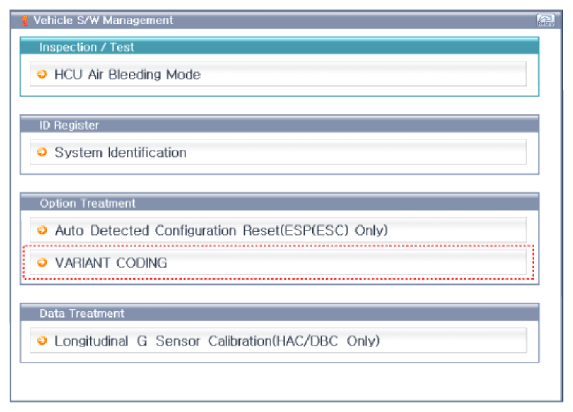

[Variant Coding]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

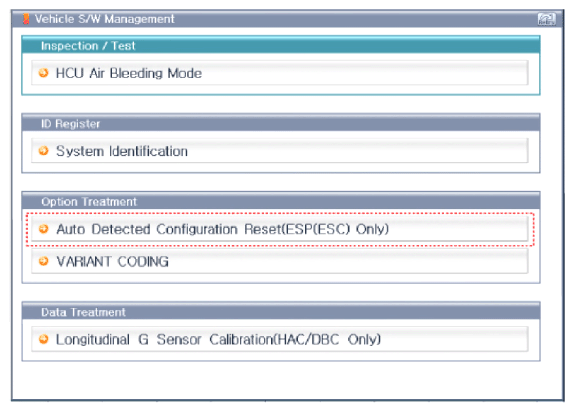

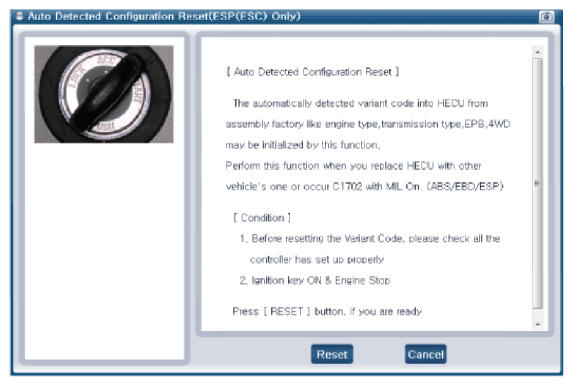

[Auto Detected Sensor Calibration]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

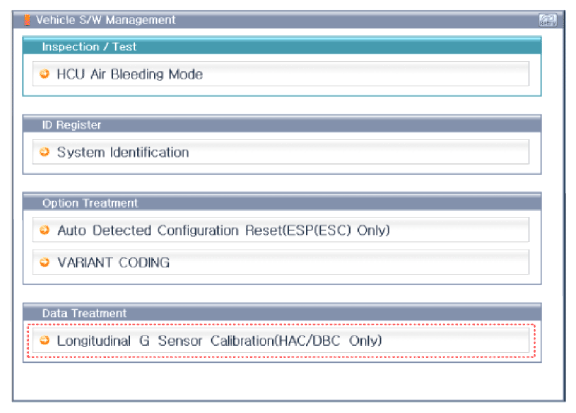

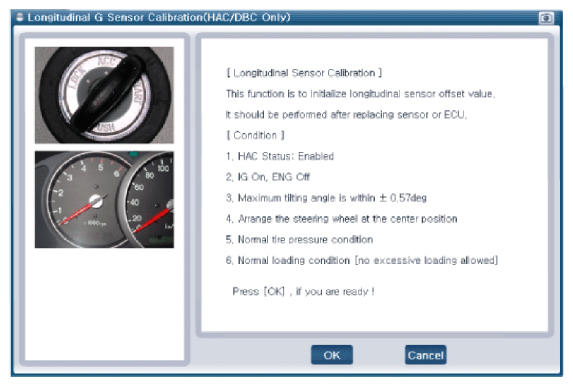

[Longitudinal G Sensor Calibration]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
