Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

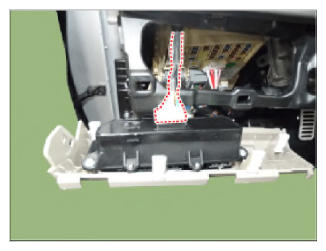

  2. Remove the Crash Pad Lower Panel.

    (Refer to Body - "CRASH PAD ")

    G13032703Courtesy of HYUNDAI MOTOR AMERICA

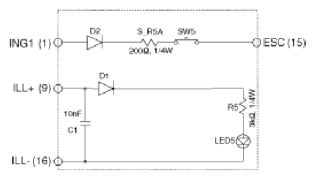

  3. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    G13032704Courtesy of HYUNDAI MOTOR AMERICA
