Home › Hyundai › 2019 › Elantra GT Base › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › Front Wheel Speed Sensor › Components And Components Location › Components

Components And Components Location: Components

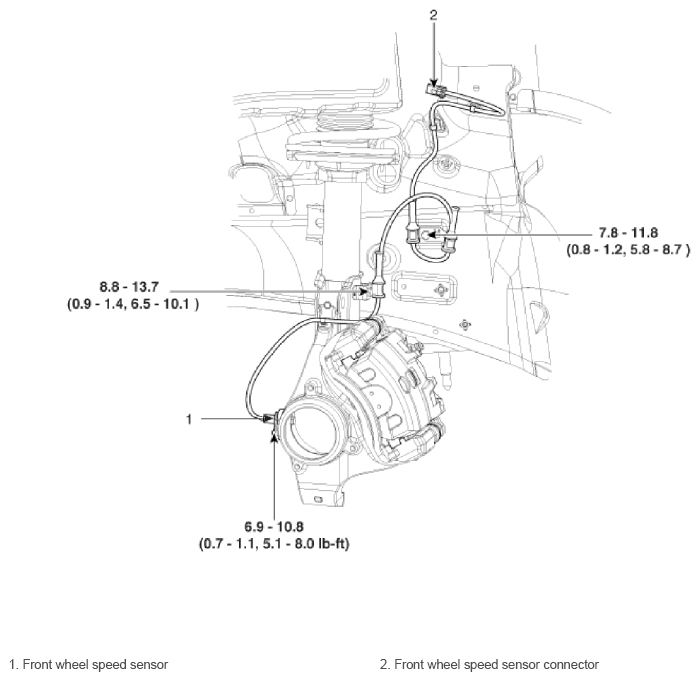

Fig 1: Front Wheel Speed Sensor Components With Torque Specification
G13032709Courtesy of HYUNDAI MOTOR AMERICA
