Repair Procedures: Removal

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

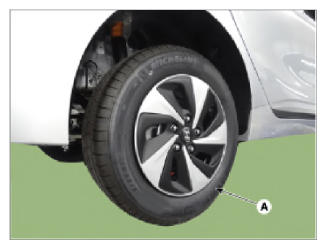

Remove the rear wheel and tire (A) from front hub.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

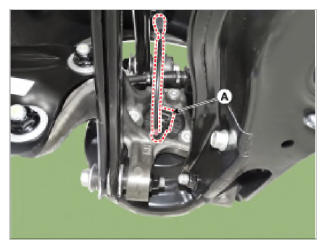

Disconnect the Rear Wheel Speed Sensor Connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

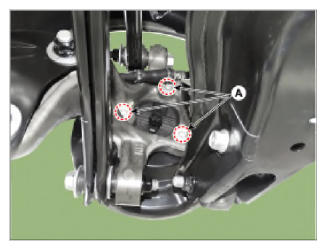

Loosen the bolts (A) and then remove the hub bearing.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
