Repair Procedures: Removal

Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")
Remove the horn (A) after disconnecting the connector (B) and loosening the mounting bolt.

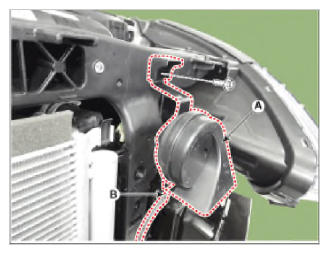

[High-Pitch Horn]

Courtesy of HYUNDAI MOTOR AMERICA

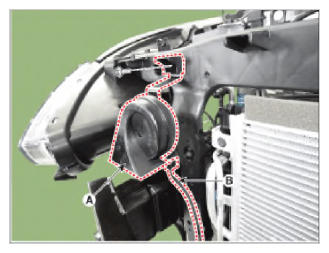

[Low-Pitch Horn]

Courtesy of HYUNDAI MOTOR AMERICA
