Home › Hyundai › 2019 › Elantra GT Base › Repair and Diagnosis › Engine Mechanical › Lubrication System - 2.0L › Oil Pan › Components And Components Location › Components

Components And Components Location: Components

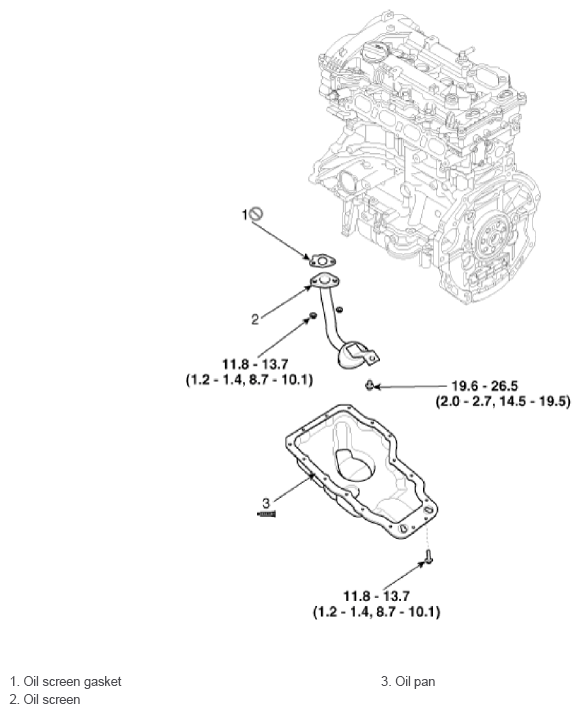

Fig 1: Oil Pan Components With Torque Specification
G13036609Courtesy of HYUNDAI MOTOR AMERICA
