Components And Components Location: Components

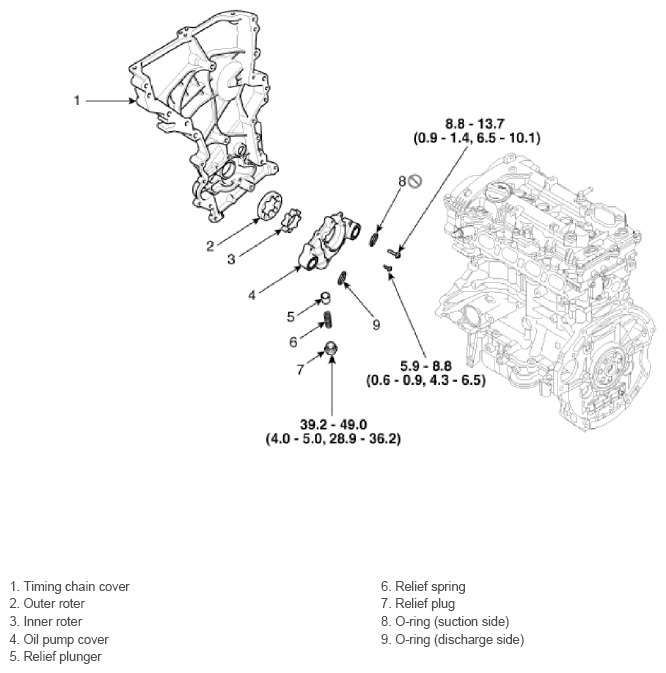

Fig 1: Oil Pump Components With Torque Specification
G13036615Courtesy of HYUNDAI MOTOR AMERICA
