Body Control Unit

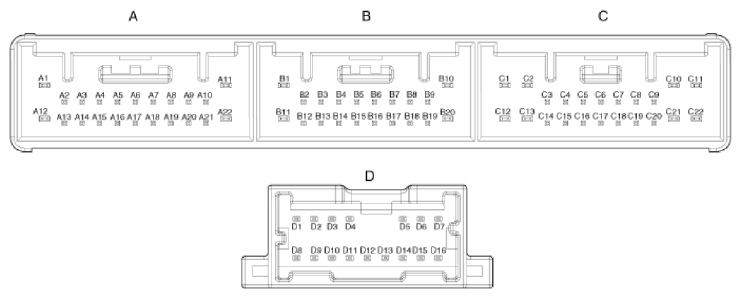

G13032267Courtesy of HYUNDAI MOTOR AMERICA
Pin Function
C11 Heated handle
C22 Ignition 2_Heated handle power
A16 Heated handle switch
C19 NTC (-)
B6 NTC (+)
D3 Heated handle IND.
