Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box upper cover assembly.
(Refer to CRASH PAD - "Glove Box Upper Cover Assembly")

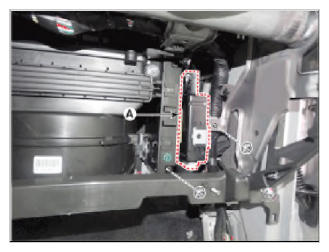

- Remove the smart key unit (A) after loosening the mounting nuts.

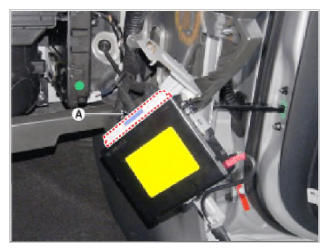

- Disconnect the smart key unit connectors (A).
