Diagnosis Procedure By Using Diagnostic Device

As 'Service Information' for diagnosis methods by using diagnosis device, the main contents are as follows:

Connect self-diagnosis connector (16-pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

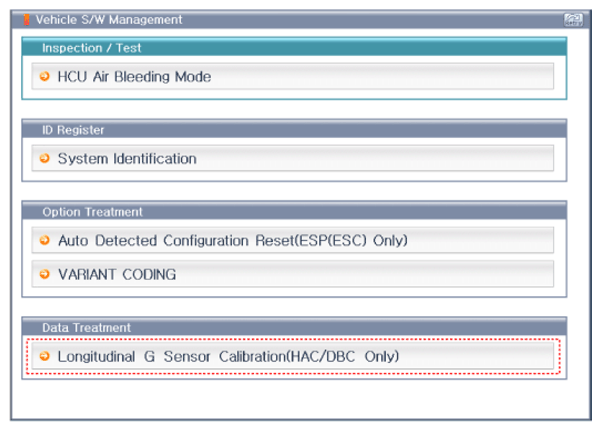

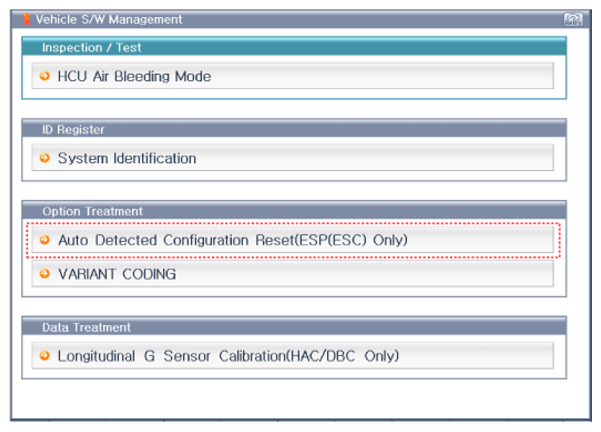

Select the "vehicle model" and "ABS/ESC" on GDS vehicle selection screen, then select OK.

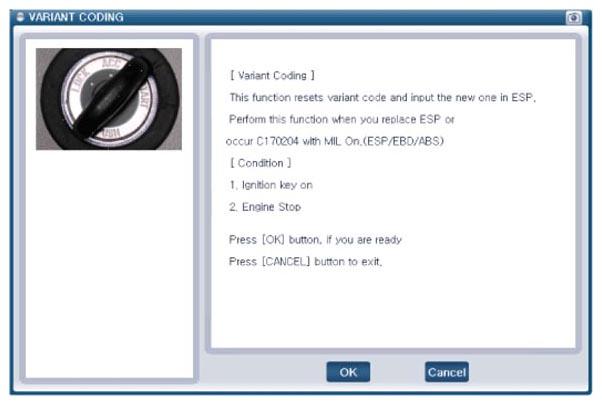

[Variant Coding]
