Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

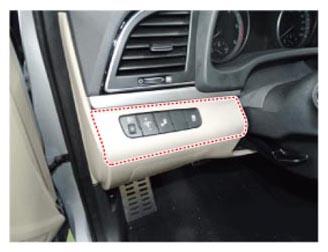

  3. Remove the side crash pad switch.
    G12973495Courtesy of HYUNDAI MOTOR AMERICA

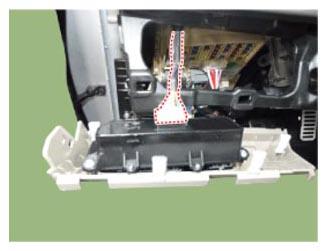

  4. Disconnect the ESC OFF switch connector.
    G12973496Courtesy of HYUNDAI MOTOR AMERICA
  5. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
G12973497Courtesy of HYUNDAI MOTOR AMERICA
