Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

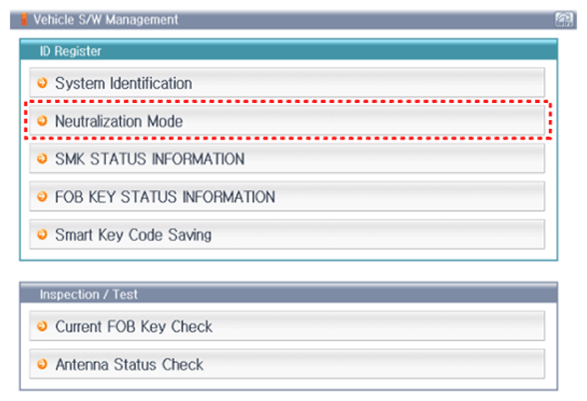

    G12975057Courtesy of HYUNDAI MOTOR AMERICA

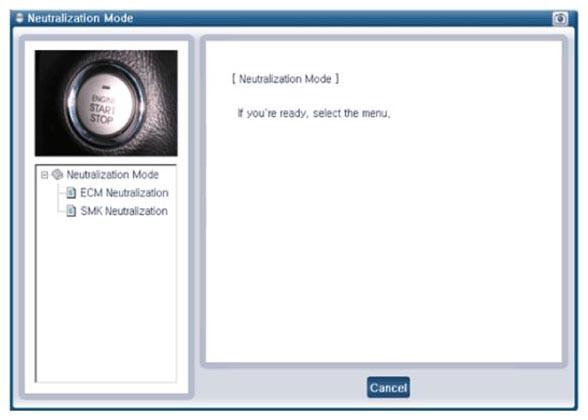

    G12975058Courtesy of HYUNDAI MOTOR AMERICA

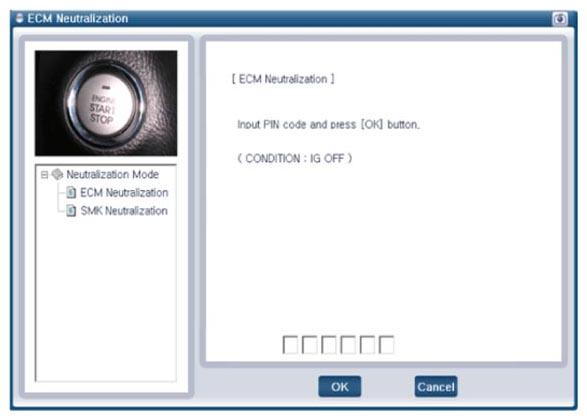

    G12975059Courtesy of HYUNDAI MOTOR AMERICA

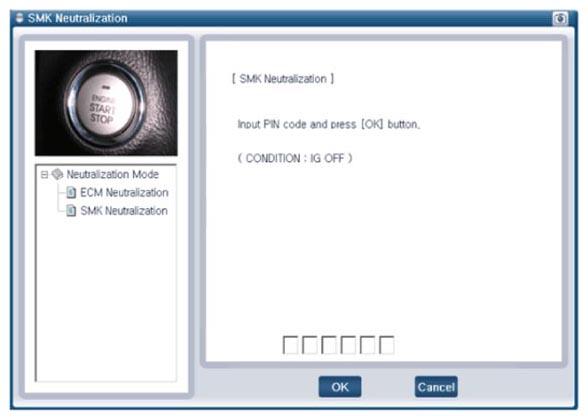

    G12975060Courtesy of HYUNDAI MOTOR AMERICA
