Without Paddle Shift

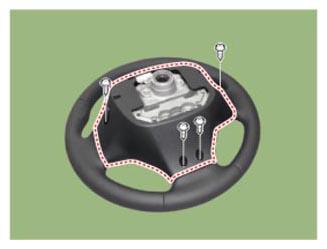

  1. Loosen the screw and then remove the lower cover.
    G12973026Courtesy of HYUNDAI MOTOR AMERICA

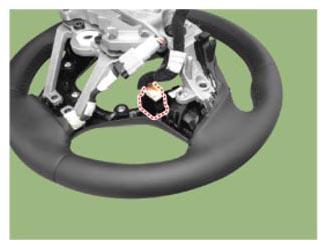

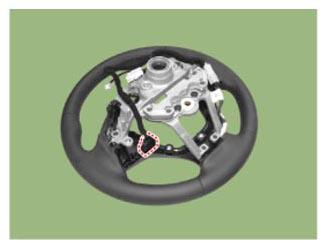

  2. Disconnect the remote control switch connector.
    G12973027Courtesy of HYUNDAI MOTOR AMERICA
    G12973028Courtesy of HYUNDAI MOTOR AMERICA
  3. Separate the remote control switch by loosening the screw.
    G12973029Courtesy of HYUNDAI MOTOR AMERICA

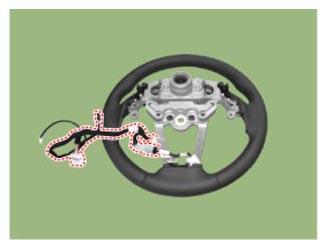

  4. Disconnect the connector and then remove the wiring.
    G12973030Courtesy of HYUNDAI MOTOR AMERICA
  5. To reassembly, reverse the disassembly procedure.
