Home › Hyundai › 2019 › Elantra SE, Standard Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Manual Transaxle Control System - 2.0L › Control Cable › Components & Components Location › Components

Components & Components Location: Components

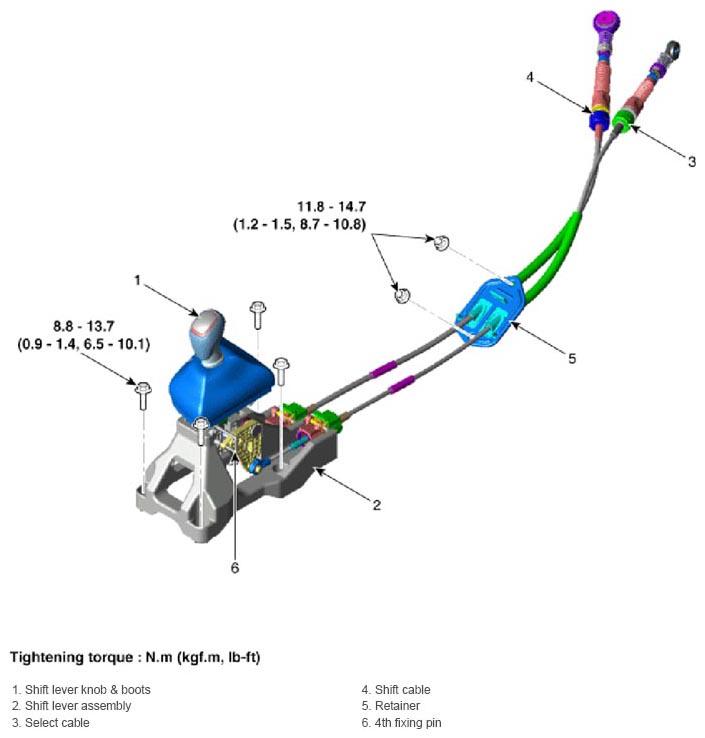

Fig 1: Control Cable Components Location With Torque Specification
G12981080Courtesy of HYUNDAI MOTOR AMERICA
