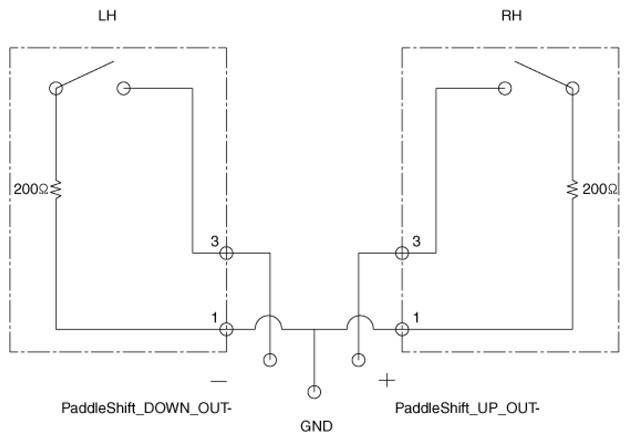

Paddle Shift Switch Circuit Diagram
Paddle Shift Switch Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
