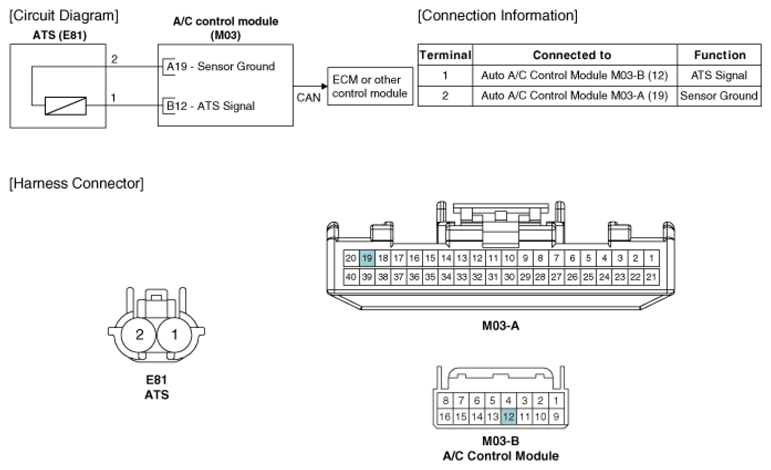

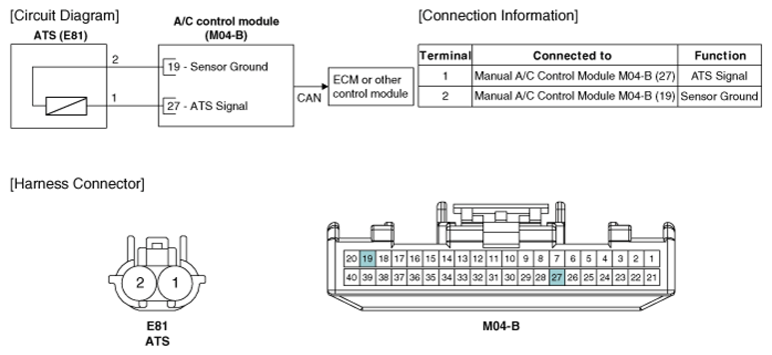

Home › Hyundai › 2019 › Elantra Sport, Automatic DCT Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Ambient Temperature Sensor (ATS) › Schematic Diagrams › Circuit Diagram
