Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

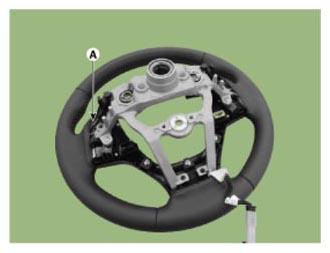

Remove the steering back cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

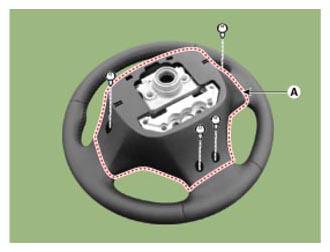

Remove the steering remote control connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

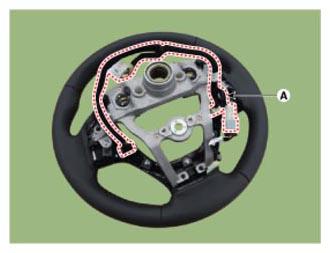

Remove the steering remote control after loosening the screws.

Courtesy of HYUNDAI MOTOR AMERICA
