Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

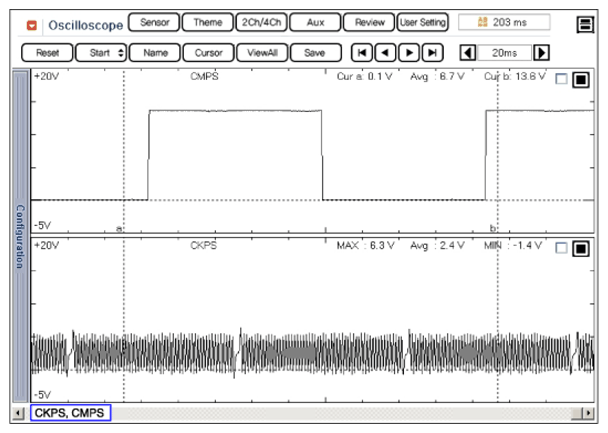

G12980883Courtesy of HYUNDAI MOTOR AMERICA

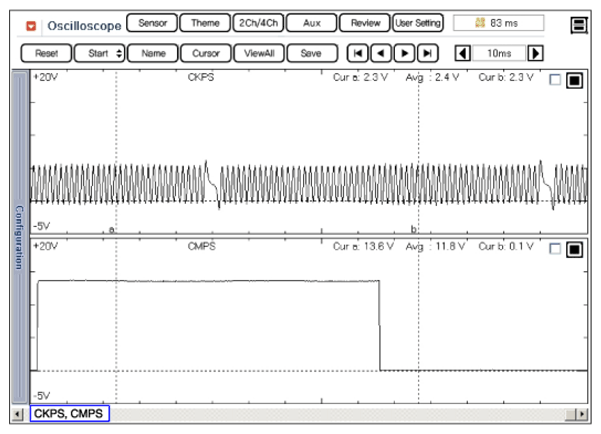

G12980884Courtesy of HYUNDAI MOTOR AMERICA
