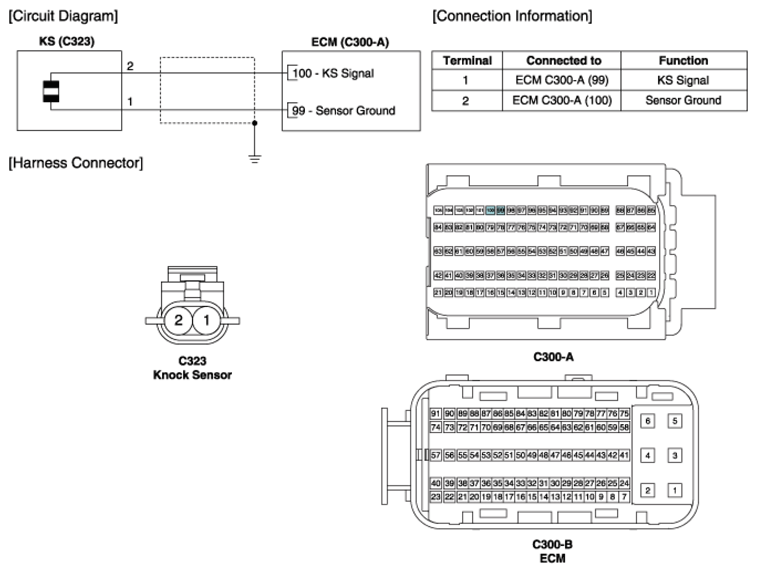

Home › Hyundai › 2019 › Elantra Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram
