DTC P2237-00: O2 Sensor Pumping Current Circuit/Open (Bank 1 Sensor 1)
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data
Courtesy of HYUNDAI MOTOR AMERICA

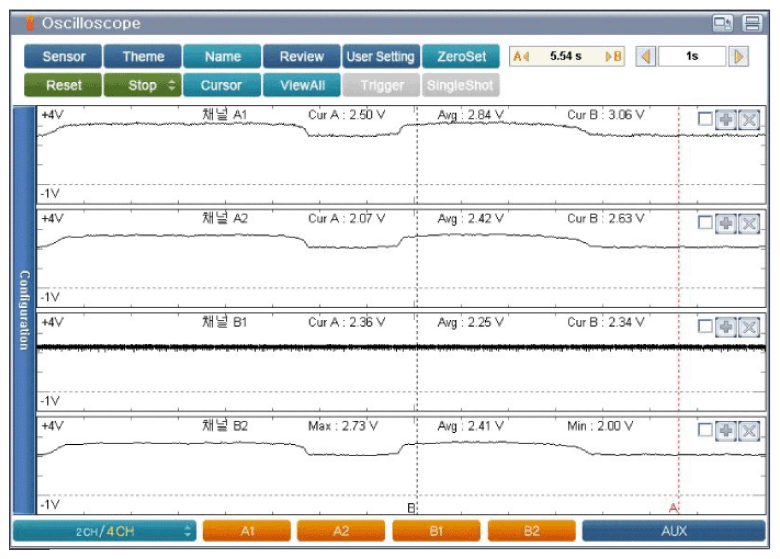

Fig.1) Normal waveform of front Heated Oxygen Sensor(S1) (engine idle)
CH A1 (Nernst cell voltage), CH A2 (Pump cell voltage), CH B1 (Common ground), CH B2 (Compensative resistance)
