[Water Temperature Control Assembly]

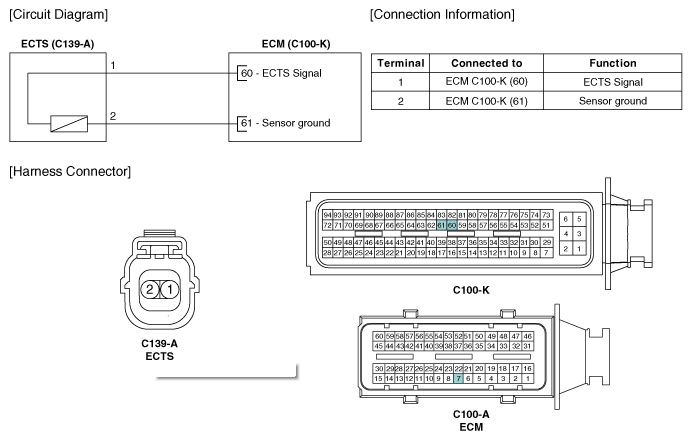

Fig 1: Engine Coolant Temperature Sensor System Circuit (Water Temperature Control Assembly)
G12111409Courtesy of HYUNDAI MOTOR AMERICA
