Home › Hyundai › 2019 › Ioniq Plug-In Hybrid › Repair and Diagnosis › Engine Mechanical › Lubrication System (PHEV) › Oil Pan › Components And Components Location › Components

Components And Components Location: Components

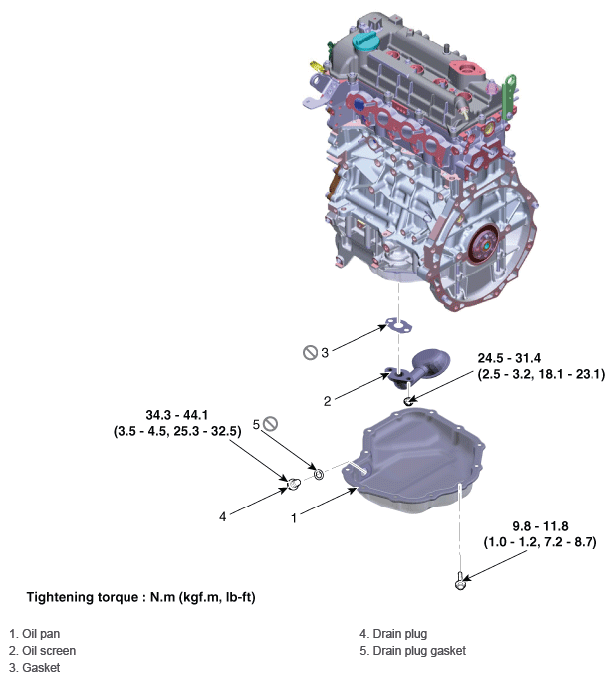

Fig 1: Oil Pan Components With Torque Specification
G12725705Courtesy of HYUNDAI MOTOR AMERICA
