Repair Procedures: Installation

  1. Install the timing chain.

    Crankshaft sprocket → Intake CVVT sprocket → Exhaust CVVT sprocket

    1. Install the timing chain with no slack between the crankshaft sprocket and the intake CVVT sprocket.

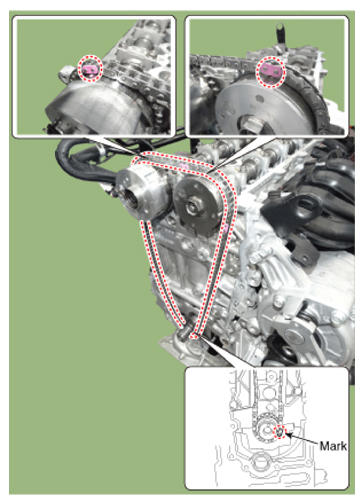

      G12725501Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • The timing marks of each sprocket should be matched with timing marks (color link) of timing chain when installing the timing chain.

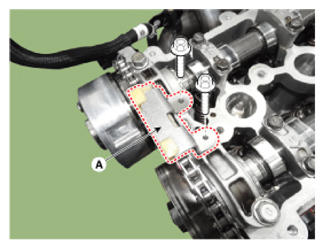

  2. Install the timing chain cam guide (A).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G12725502Courtesy of HYUNDAI MOTOR AMERICA

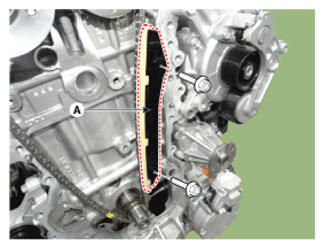

  3. Install the timing chain guide (A).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G12725503Courtesy of HYUNDAI MOTOR AMERICA

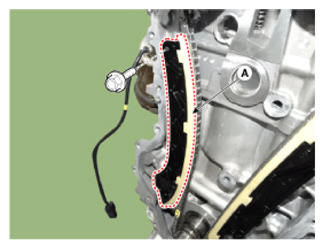

  4. Install the timing chain tensioner arm (A).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G12725504Courtesy of HYUNDAI MOTOR AMERICA

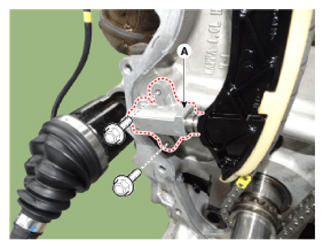

  5. Install the timing chain tensioner (A) and remove the stopper pin.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G12725505Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When reinstall the tensioner, check the ratchet function of the tensioner after removing the fixing pin by retracting the tensioner arm (A) maximally as displayed in the image below.
    • When maximally retracted, there should be no interference between the tensioner arm (A) and tensioner housing (B).

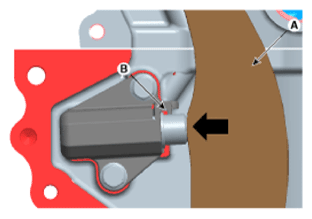

      G12725506Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the other parts in the reverse order of removal.
  7. Add all the necessary fluids and check for leaks. Connect GDS. Check for codes, note, and clear. Recheck.
    NOTE:
    • Refill engine with engine oil.
    • Clean battery posts and cable terminals and assemble (12 Volt only).
    • Inspect for fuel leakage.
      • After assembling the fuel line, turn on the ignition switch so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
      • Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
