Repair Procedures: Removal: Notes
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")
- Remove the Smart Key Unit.
(Refer to Body - "SMART KEY UNIT ")

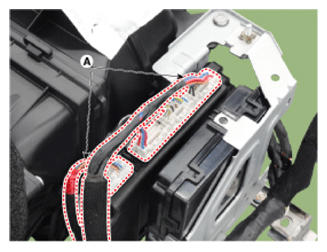

- Disconnect the body control module connectors (A).

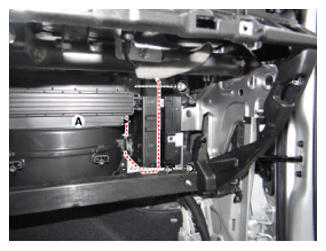

- Remove the body control module (A) after loosening the mounting nuts.
- To install, reverse the removal procedure.
