Body Control Module

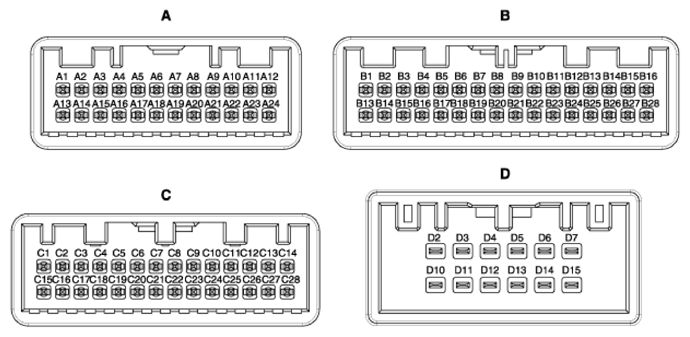

G12727874

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Function
D3	Ignition 2_Heated handle power
D4	Ignition 2_Heated handle power_2
D5	Heated handle
C22	NTC (-)
C9	NTC (+)
C4	Heated handle switch
