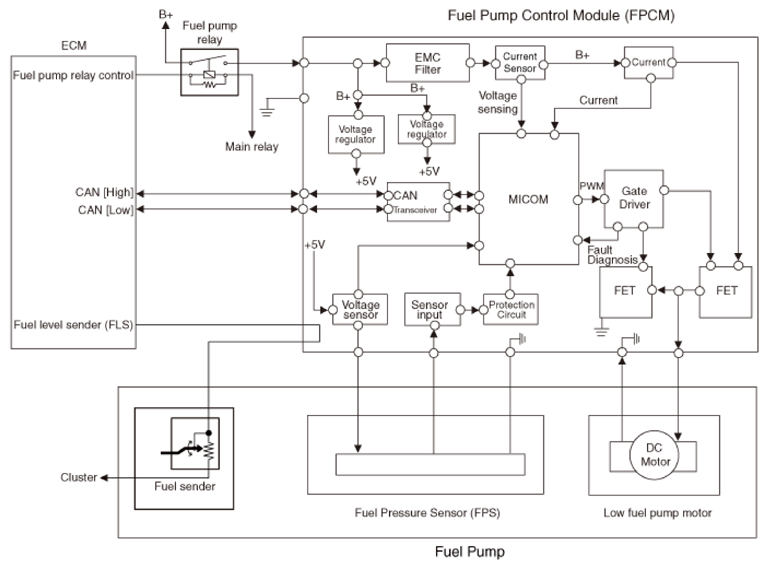

Home › Hyundai › 2019 › Kona Limited, FWD › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 1.6L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
