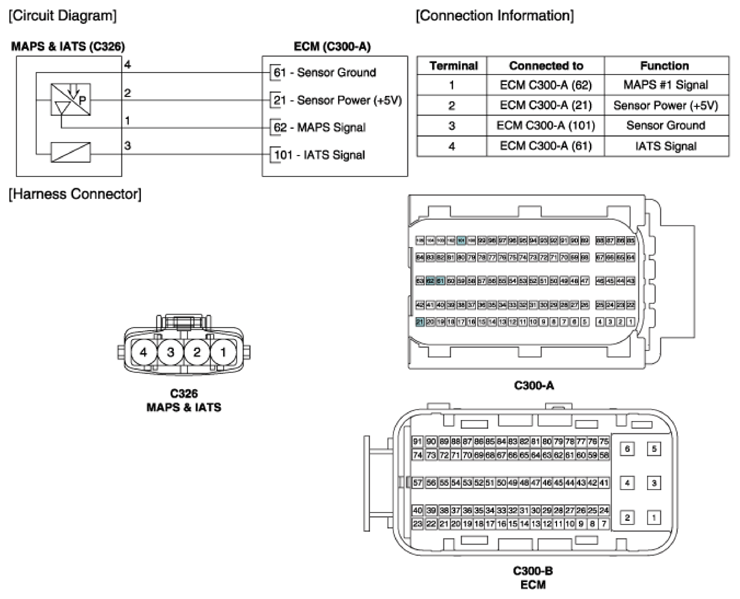

Home › Hyundai › 2019 › Kona SE, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram
