Front View Camera Variant Coding

Front view camera variant coding makes it possible to operate functions for each vehicle type. If the variant coding differs from the vehicle specification, the "variant coding error" DTC is displayed.

1. Procedure for coding variants
   1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.
   2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.

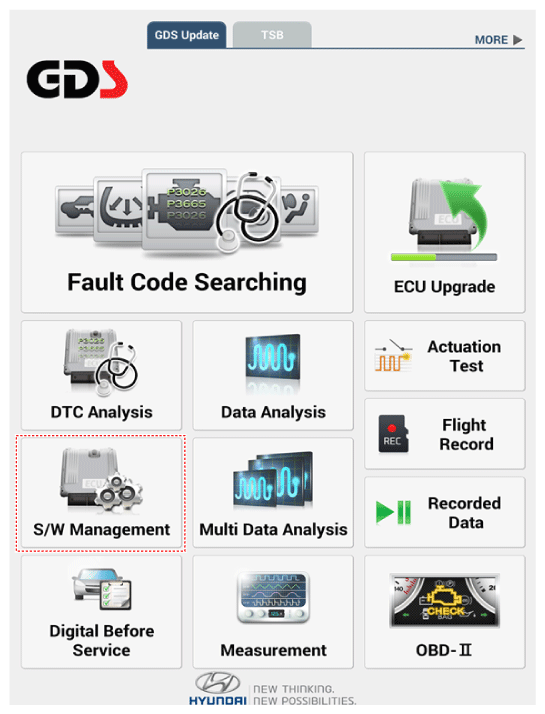

   3. Select the 'S/W Management' and 'Car model'.

      Courtesy of HYUNDAI MOTOR AMERICA

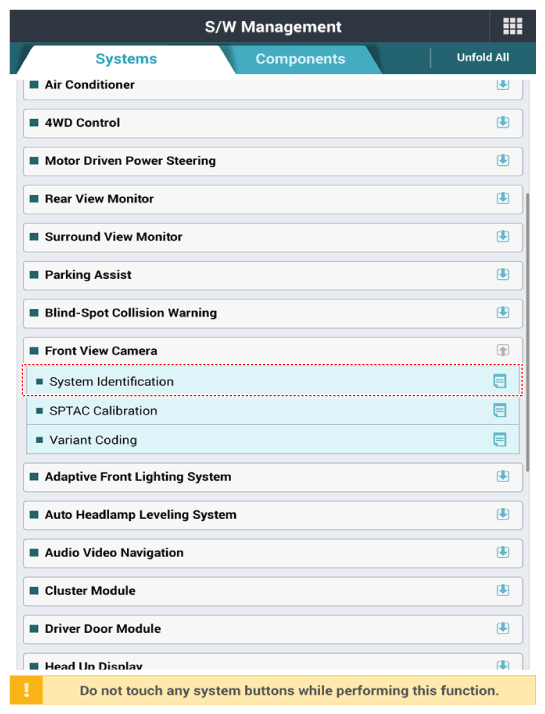

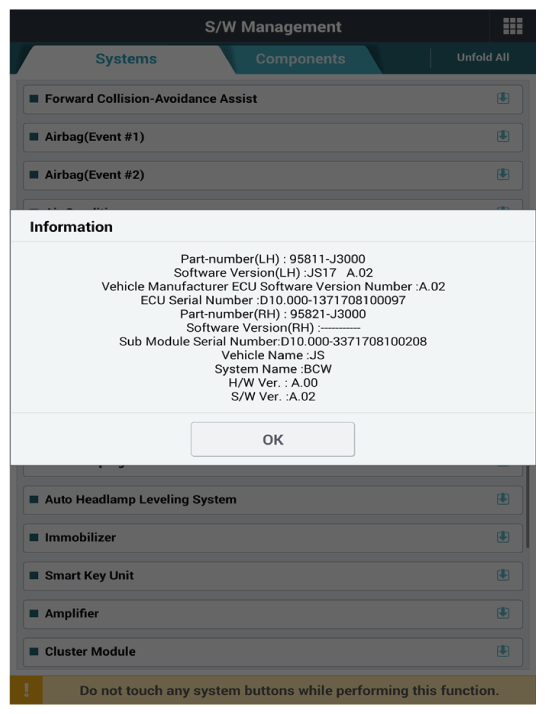

   4. Select "System Identification".

      Courtesy of HYUNDAI MOTOR AMERICA

      Courtesy of HYUNDAI MOTOR AMERICA

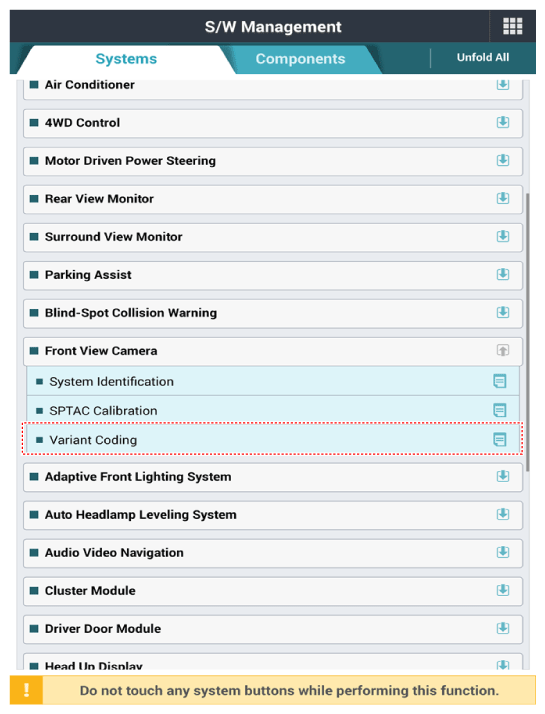

   5. Select "Variant Coding".

      Courtesy of HYUNDAI MOTOR AMERICA

   6. Enter the value of the specification read in procedure (4) in the new front view camera.
