Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

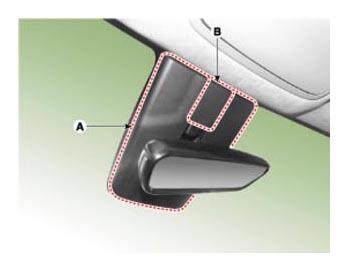

  2. Remove the mirror wiring cover (A) and rain sensor cover (B).
    G13038356Courtesy of HYUNDAI MOTOR AMERICA

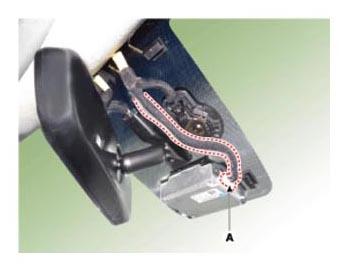

  3. Disconnect the front view camera connector (A).
    G13038357Courtesy of HYUNDAI MOTOR AMERICA

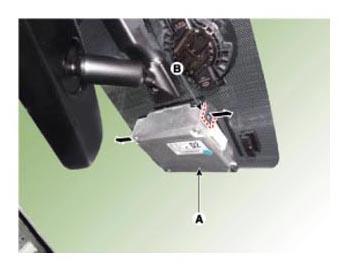

  4. Separate the fixed points (A) of coupler, remove the front view camera.
    G13038358Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When separate the fixed points, be careful not to damage it.
