Repair Procedures: Removal
CAUTION:
Replacement Components
- Put on gloves to prevent hand injuries.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the tailgate trim.
("LIFTGATE TRIM ")
- Remove the rear spoiler.
(Refer to Body Side Molding - "REAR SPOILER ")

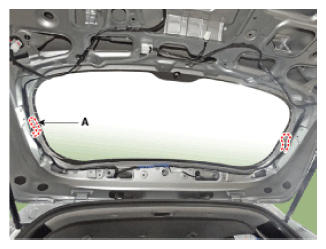

- Disconnect the hot wire connector (A).

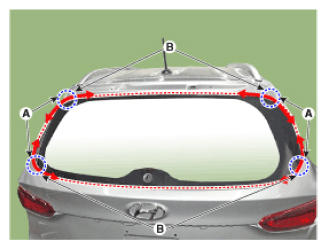

- Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
Information
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

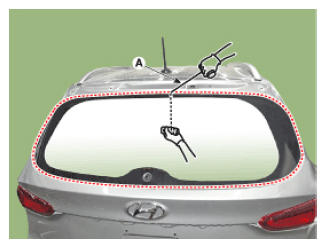

- Put in a piano wire (A) through the corner of the tailgate window glass and insert wire grips into both ends of the wire.

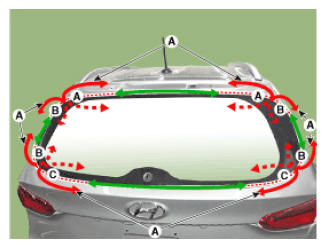

- Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
- Remove the tailgate window glass (A).
