Components And Components Location: Components

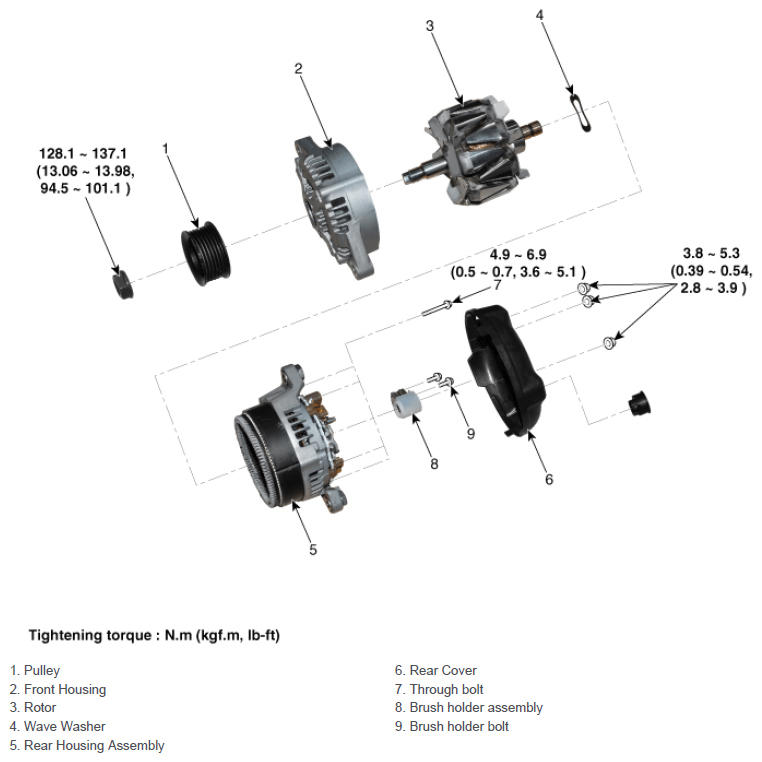

Fig 1: Alternator Components With Torque Specification
G12991666Courtesy of HYUNDAI MOTOR AMERICA
