Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the lower crash pad.

    (Refer to Body - "CRASH PAD ")

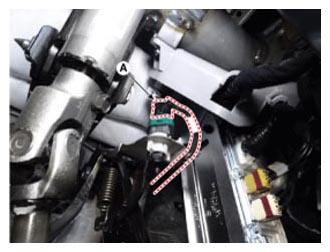

  3. Disconnect the stop lamp switch connector (A).
    G13039629Courtesy of HYUNDAI MOTOR AMERICA
  4. Pull the locking plate (A) as indicated by the arrow.
    G13039630Courtesy of HYUNDAI MOTOR AMERICA
  5. Turn stop lamp switch (A) 45° counterclockwise and remove it.
    G13039631Courtesy of HYUNDAI MOTOR AMERICA
  6. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
      G13039632Courtesy of HYUNDAI MOTOR AMERICA
    2. Perform the inspection of parts resistance
      G13039633Courtesy of HYUNDAI MOTOR AMERICA
      Resistance (Ω) 3-4 1-2
      Non rod protruded
      (switch turned OFF)      		 Infinite 0
      Rod protruded
      (switch turned ON)      		 0 Infinite
