Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

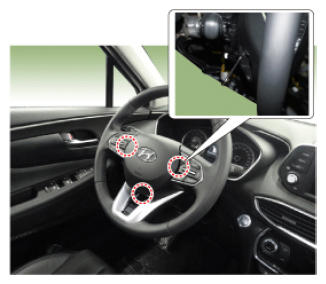

  2. Put a flat tool (05 mm) into a guide hole located in the bottom of steering wheel and press a spring.
    G12993702Courtesy of HYUNDAI MOTOR AMERICA
    G12993703Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When put a tool into a hole, make sure not to damage an airbag cushion by a tool.

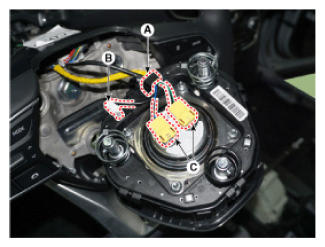

  3. Release the connector locking (A), then disconnect the driver airbag module connector (C) and horn connector (B).
    G12993704Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the steering wheel.

    (Refer to Steering System - "REMOVAL ")

  5. Loosen the steering wheel column shroud panel.

    (Refer to Body - "STEERING WHEEL COLUMN SHROUD PANEL ")

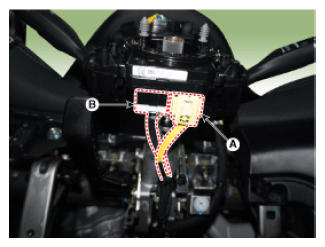

  6. Disconnect the clock spring (A) and horn connector (B), then remove the clock spring.
    G12993705Courtesy of HYUNDAI MOTOR AMERICA
