Repair Procedures: Installation
WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the engine OFF.
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.

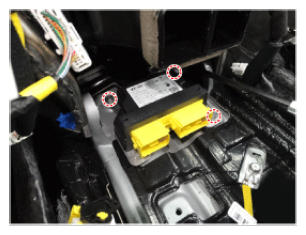

- Install the SRSCM with the SRSCM mounting bolts (3EA).
Tightening torque:
10.8 - 12.7 N.m (1.0 - 1.3 kgf.m, 7.2 - 9.4 lb-ft)
- Connect the SRSCM harness connector.
- Install the rear air duct.
- Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
- Reconnect the battery negative cable.
- After installing the SRSCM, confirm proper system operation:
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
CAUTION:- If the SRSCM is replaced always, perform variant coding. Also, perform the lateral G sensor 0 point setup.
(Refer to Brake System - "YAW-RATE AND LATERAL G SENSOR ")
- If the SRSCM is replaced always, perform variant coding. Also, perform the lateral G sensor 0 point setup.
