Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Shift the gear to "N".
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

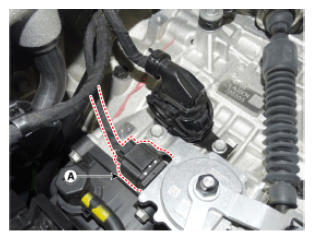

- Disconnect the position switch connector (A).

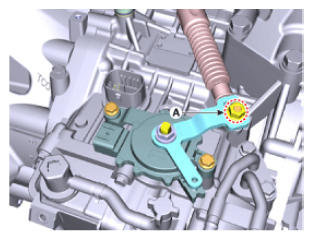

- Remove the shift cable after loosening the nut (A).

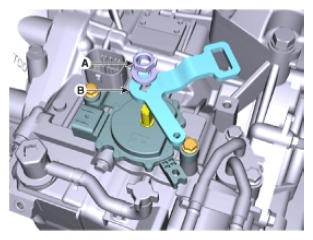

- Remove the manual control lever (B) and the washer after removing a nut (A).

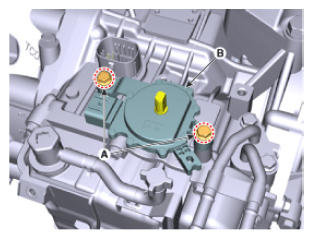

- Remove the position switch (B) after loosening the bolts (A).
