Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.

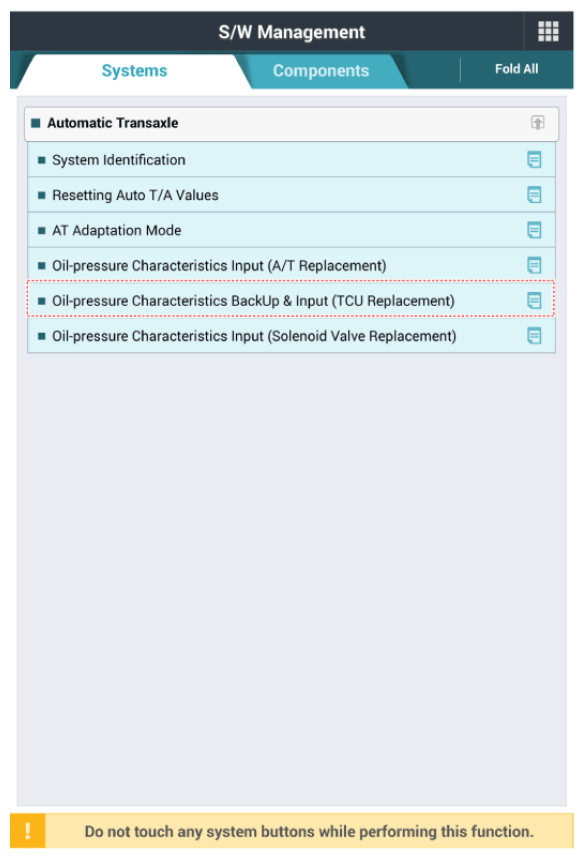

- Perform the oil pressure characteristics backup procedure using the GDS when replacing with a new TCM.
- Turn ignition switch OFF and disconnect the negative (-) battery terminal.
- Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")

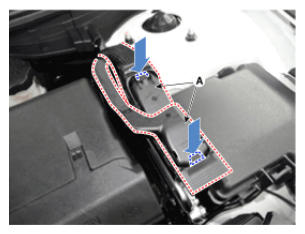

- Disconnect the TCM connector (A).
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

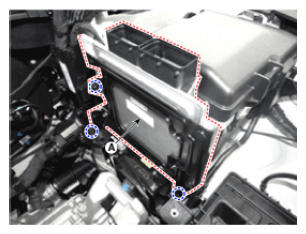

- Remove the TCM (A) after removing the bolt and nut.
TCM installation bolt/nut
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
