Section 1 (Automatic Transaxle Control System - 2.0L)
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›

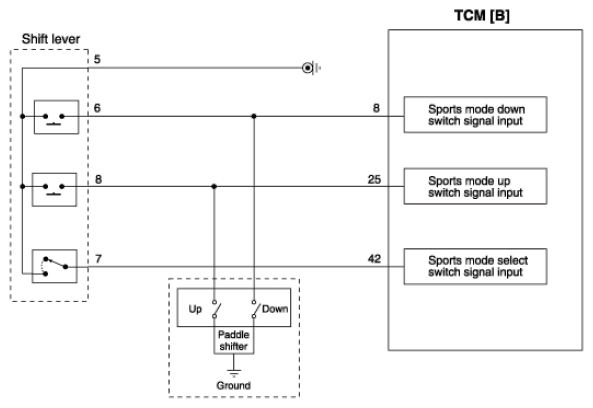

Circuit Diagram

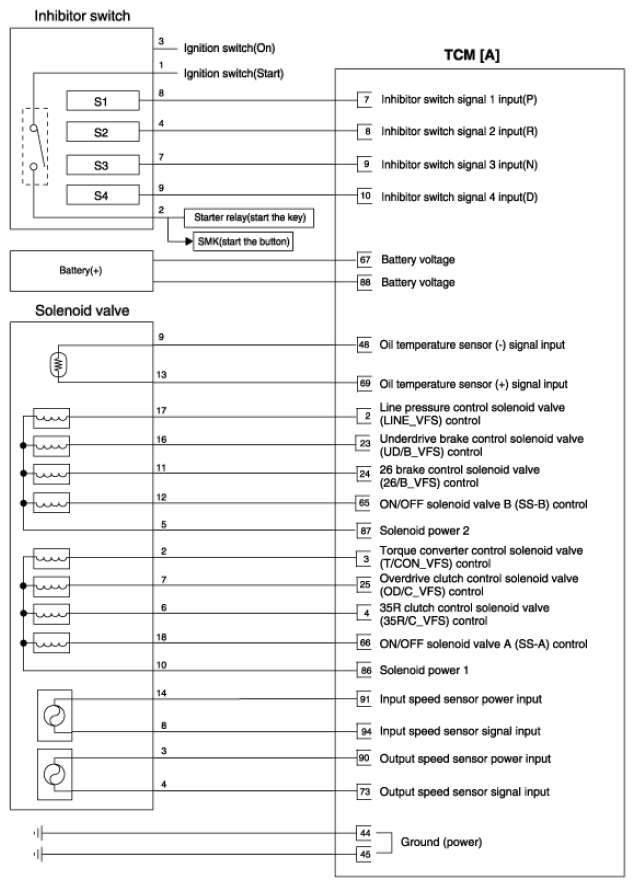

Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
