Component Location: Notes

WARNING: This page is about a different variant/trim than selected.

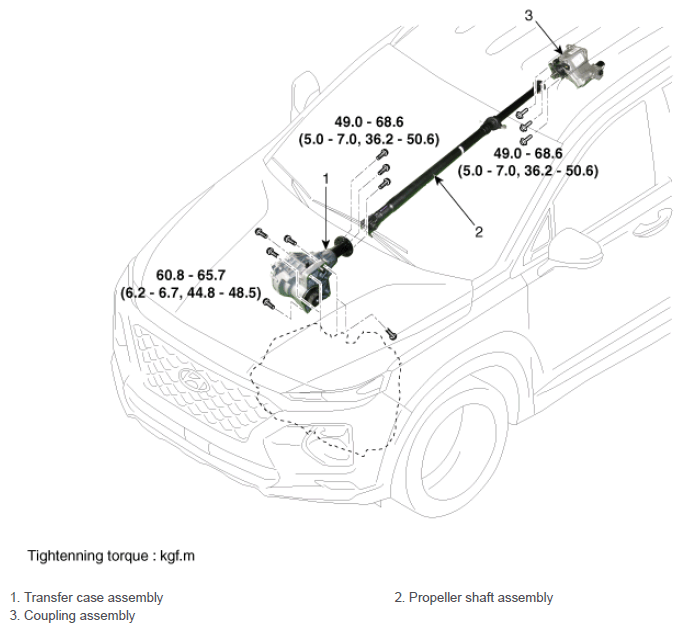

Fig 1: Coupling Assembly Components With Torque Specification
G12993217Courtesy of HYUNDAI MOTOR AMERICA
