Door Outside Handle

  1. Disconnect the negative (-) battery terminal.

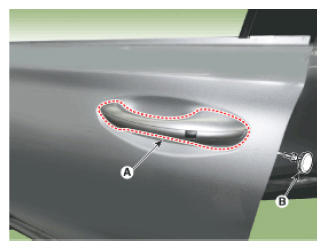

  2. Remove the door outside handle cover (A) after separating the plug hole (B) from the door by loosening the mounting bolt.
    G12999029Courtesy of HYUNDAI MOTOR AMERICA

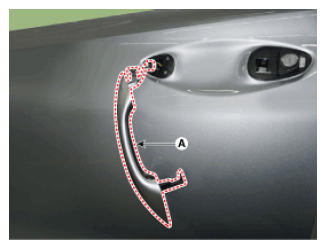

  3. Disconnect the door outside handle connector.
    G12999030Courtesy of HYUNDAI MOTOR AMERICA

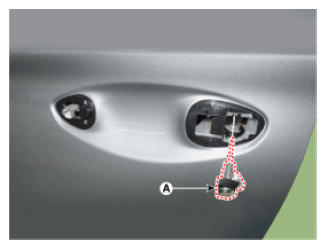

  4. Remove the front door lock assembly (A).
    G12999031Courtesy of HYUNDAI MOTOR AMERICA
