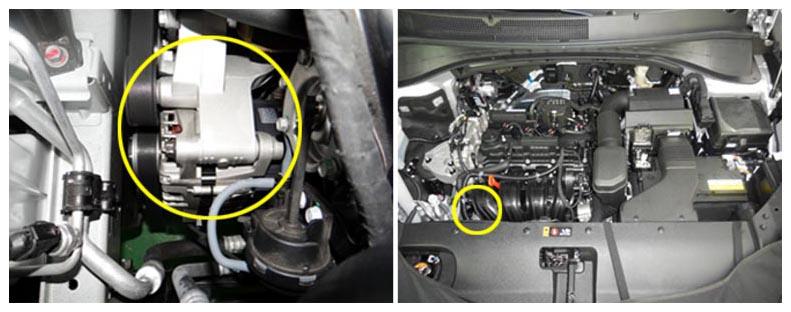

Component Location: Alternator

Courtesy of HYUNDAI MOTOR AMERICA

PCM monitors the normality of PWM signal in alternator's FR circuit by comparing with the criterion value under IG ON state. The signal duty is directly proportional to electrical load.
