Repair Procedures: Inspection

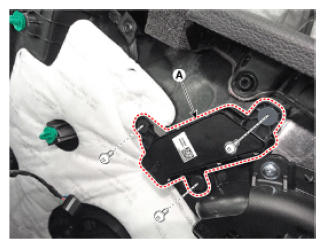

  1. Disconnect the IMS control switch connector.
    G12999090Courtesy of HYUNDAI MOTOR AMERICA

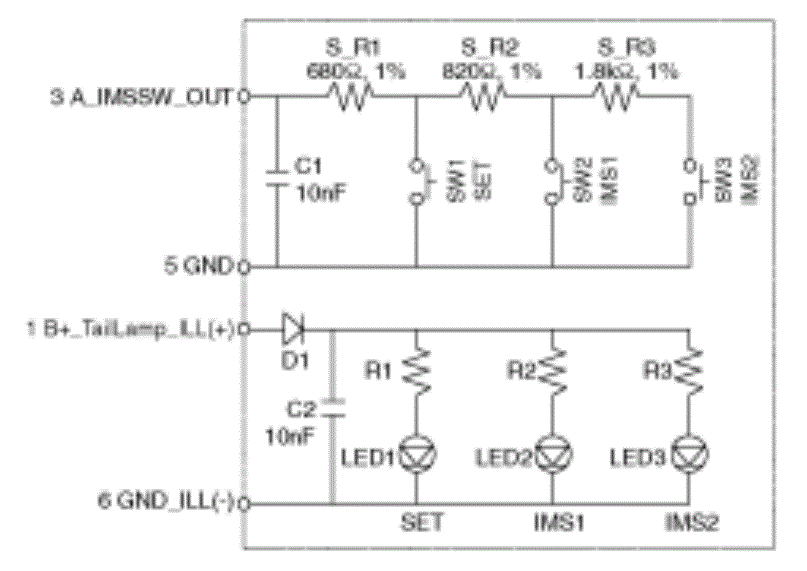

  2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.
    G12999091Courtesy of HYUNDAI MOTOR AMERICA
